Strong Adsorption Alumina Ceramic Foam Filter Plate


Description :
Alumina ceramic foam filter is a kind of effective molten metal filter. It's three-dimensional connected mesh structure and has many advantages of high porosity, high mechanical strength, stable chemical property, strong corrosion-resistant,Strong Adsorption, high adsorption rate, excellent filtering functions and thermal shock resistance.Alumina ceramic foam filter is equipped with a gasket on the edges; the gasket assures the proper and tight position of the filter within the filter box. There are different types of gasket available, e.g. ceramic fiber gasket etc., also can provide alumina ceramic foam filter without gasket. These types of filters have been favored by customers from Europe and the United States for years.




Application:

Alumina ceramic foam filter is mainly applied to the aluminum and aluminum alloys fusant filter equipment of continuous casting ,half-continuous casting ,gravity casting ,and low pressure casting,also applied to other non-ferrous metal precision casting ,gas -solid and liquid-solid separation medium ,high temperature gas filter,chemical filling ,sound absorbing material and catalysis carrier etc.

Regular Sizes and Filtration Capacity


Size
(mm)
Capacity
(Kg)
Flow Rate
(Kg/s)
Capacity
(Kg)
Flow Rate
(Kg/s)
10ppi20ppi
40×40×22261.5191
50×30×25241.5181
50×50×22402301.5
60×60×15583432
60×60×30583432
75×75×22905674
100×75×251206.5895
100×100×2516091197
125×125×252501418610
150×150×253602026815
Dia40×15201151
Dia50×22311.5231.5
Dia60×15452.5332
Dia75×22714523
Dia90×221025.2764
Dia100×301267935
Dia125×30196111468
Dia150×302831621012
Large size
(Inch)
Capacity
(Ton)
Flow Rate
(kg/min)
7"×72"3.525 ~ 56
9"×92"725 ~ 75
12"×122"1495 ~ 180
15"×152"20140~ 280
17"×172"26190 ~ 360
20"×202"29260 ~ 500
23"×232"34350 ~ 690

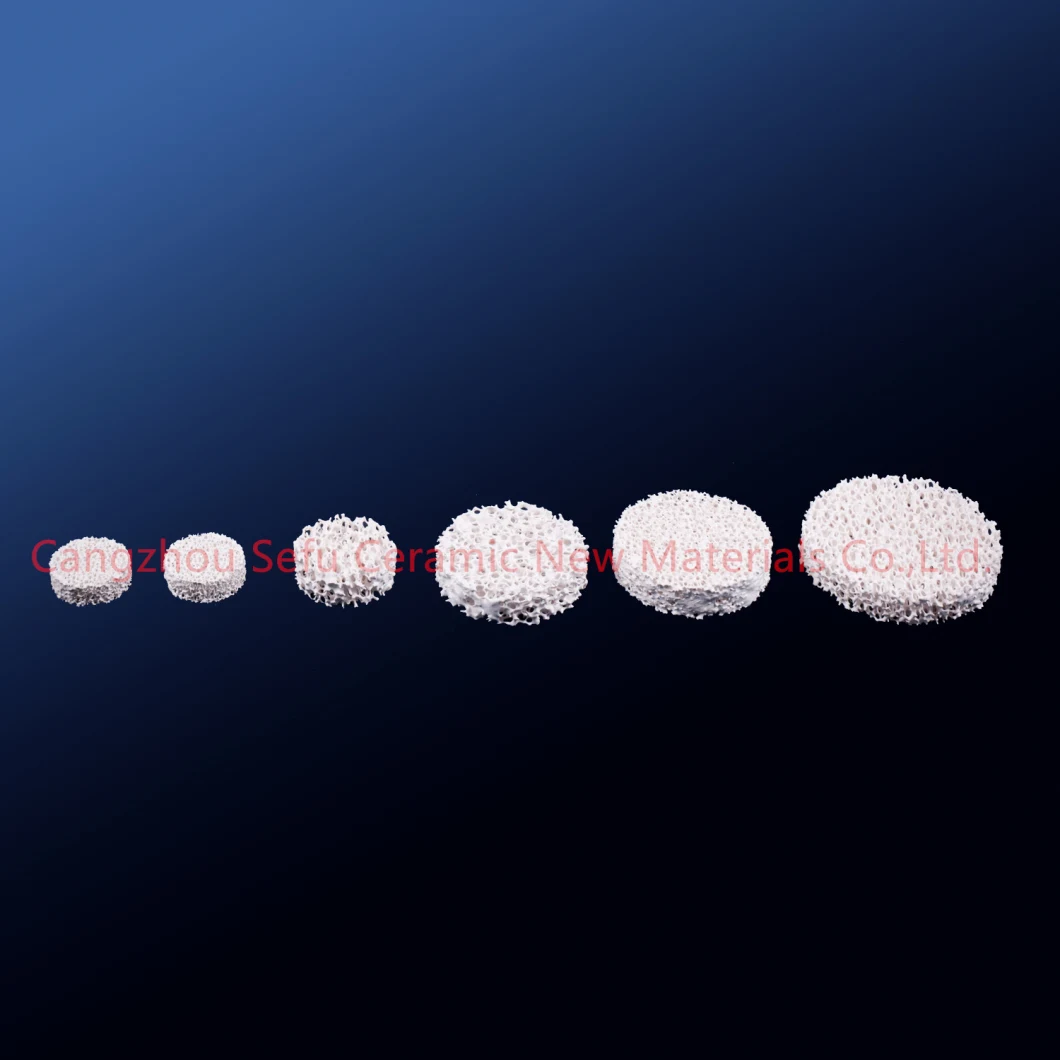

Detailed Images

Strong Adsorption Alumina Ceramic Foam Filter PlateStrong Adsorption Alumina Ceramic Foam Filter Plate
Strong Adsorption Alumina Ceramic Foam Filter PlateStrong Adsorption Alumina Ceramic Foam Filter Plate

Shipping
Lead time: 10-15days after signed the contract
Strong Adsorption Alumina Ceramic Foam Filter Plate


Packing
  1.  Inside packing: Filters are put in small box and Layered packaging. There is cardboard between each layer.
  2. Outside packing: Cartons&Pallets. Three layer corrugated cartons and export special pallets .
  3. The mark on cartons can be designed according to the customer's request.
Strong Adsorption Alumina Ceramic Foam Filter Plate

FAQ
Q: Are you Factory?
A: Definitely, we are factory.  Welcome to visit us!
Q: What Parameters should I provide to you for proper quotation?
A: Application, pore size, dimension, color, quantity, packing requirements, trade terms.

Q:How can you control your quality?
A:For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and we have the quality certificates with ISO9001.

Q: What is your lead time?
It usually needs about 15- 20 days after receiving the PO.
Q: Do you provide Samples?
A: Yes, our factory provide samples for testing, pls send detail parameters to us. (if customized, with drawing is best) The samples will be charged or free according to the specific requirements.
Q: What's the Payment Terms?
A: We accept T/T, L/C, West Union, etc.

Q: How can I get samples?
A: We are honor to offer you the samples.
Q: What about your Packing?
A: We provide plastic bag, woven bag, carton box, pallet, etc. OEM packing available too.
Q: Do you have R&D services?
A: Yes, we have R&D department to assist you in new product development.

Q:Does your company accept customization?
A:We accept OEM service.
Q:Can we visit your company?
A:Yes, for sure, you are welcome to visit our company.
